• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1942/1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7117

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH3 EF9 EF6 EBL1 EM4 AZ1

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

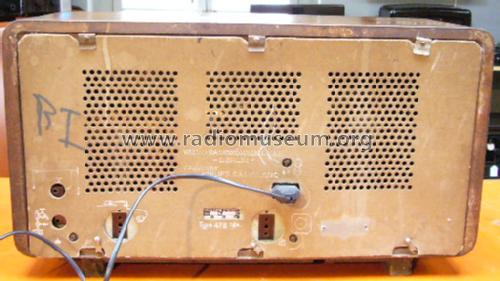

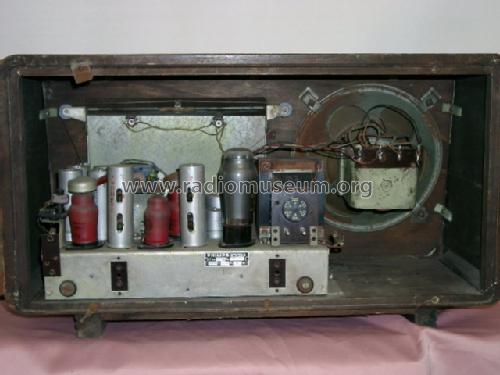

• Model: 478 Ter - Philips Italy; Milano MI

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 330 x 220 mm / 23.2 x 13 x 8.7 inch

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen
