480A-32

480A-32; Philips Norway Norsk (ID = 2354864) Radio

480A-32; Philips Norway Norsk (ID = 2354865) Radio

480A-32; Philips Norway Norsk (ID = 2354866) Radio

480A-32; Philips Norway Norsk (ID = 2354867) Radio
480A-32; Philips Norway Norsk (ID = 2056904) Radio 480A-32; Philips Norway Norsk (ID = 403439) Radio
480A-32; Philips Norway Norsk (ID = 2056903) Radio 480A-32; Philips Norway Norsk (ID = 2056906) Radio
480A-32; Philips Norway Norsk (ID = 2056907) Radio 480A-32; Philips Norway Norsk (ID = 2056909) Radio
480A-32; Philips Norway Norsk (ID = 2056905) Radio 480A-32; Philips Norway Norsk (ID = 2056908) Radio
480A-32; Philips Norway Norsk (ID = 2056910) Radio 480A-32; Philips Norway Norsk (ID = 2056911) Radio
Use red slider bar for more.
480A-32; Philips Norway Norsk (ID = 2056904) Radio
Philips Norway Norsk: 480A-32 [Radio] ID = 2056904 1400x1121

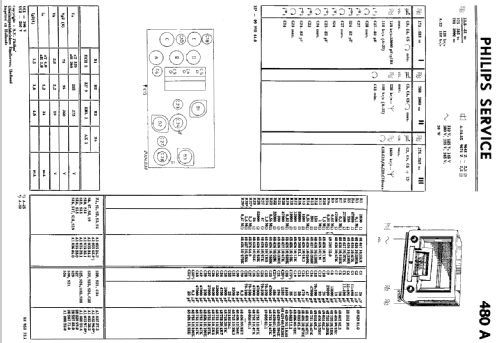

Select picture or schematic to display from thumbnails on the right and click for download.
For model 480A-32, Philips Norway (Norsk A/S Philips - A/S Radio Industri); Oslo

Country:  Norway
Manufacturer / Brand:  Philips Norway (Norsk A/S Philips - A/S Radio Industri); Oslo
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 118 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 225; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 480A-32 - Philips Norway Norsk A/S
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 340 x 235 mm / 18.1 x 13.4 x 9.3 inch
Notes

See also Philips Netherlands 480A in several variants with bakelite cabinet.

Price in first year of sale 225.00 NKR
Mentioned in Norwegian Historical Radio Society

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Philips Norway (Norsk A/S Philips - A/S Radio Industri); Oslo
Here you find 56 models, 49 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
