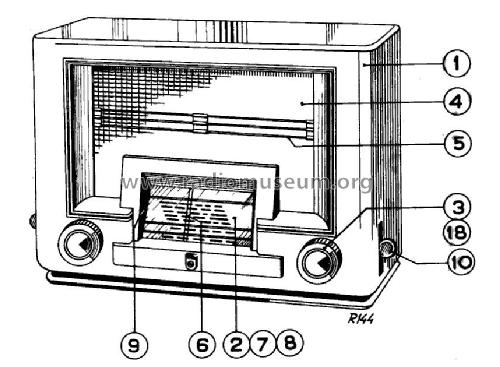

Philips Belgium: 480A -20 [Radio] ID = 1940051 858x630
Select picture or schematic to display from thumbnails on the right and click for download.
For model 480A -20, Philips Belgium (Belgien):

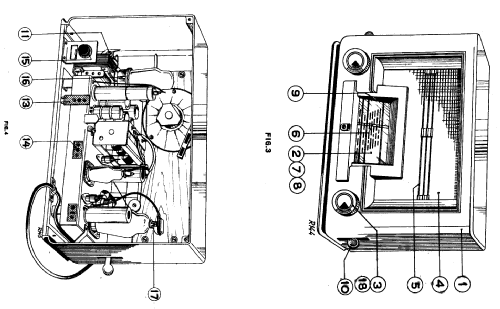

from technical manual

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 EBL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 480A -20 - Philips Belgium Belgien
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 320 x 240 mm / 19.3 x 12.6 x 9.4 inch
Notes
3 Band reception:
  • LW: 708 - 2000 m.
  • BC: 175 - 585 m.
  • SW: 13,8 - 51 m.
Tuning scale light bulbs type: 8045D (6,3V, 320mA).
Loudspeaker Philips type 9648. Connectors for second loudspeaker and for pick-up.

Variant -20 is intended for the Belgian market.
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Price in first year of sale 1,400.00 BEF
Mentioned in -- Original-techn. papers. (Type 480A & -20 in french & dutch)

Model page created by Dirk Bladt. See "Data change" for further contributors.
