For model 525U -23, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: CK1 CF2 CB1 or CB2 CF1 CL2 CY1 C1
Main principle Super-Heterodyne (Super in general); ZF/IF 104 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-119; 120-130; 200-224; 225-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 525U -23 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 350 x 407 x 254 mm / 13.8 x 16 x 10 inch
Notes
2 Band reception:
  • LW: 760 - 1950 m.
  • BC: 210 - 570 m.

Tuning scale light bulbs type: 2 x 8066 (9V, 200mA).

Loudspeaker Philips type 4283. Connectors for second loudspeaker and for pick-up.

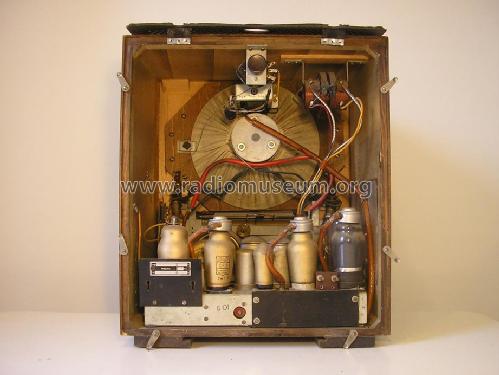

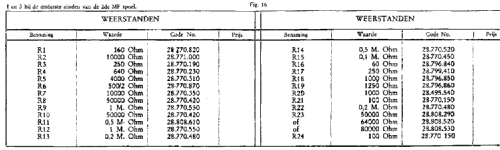

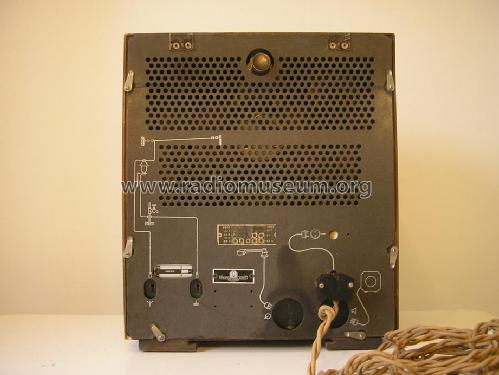

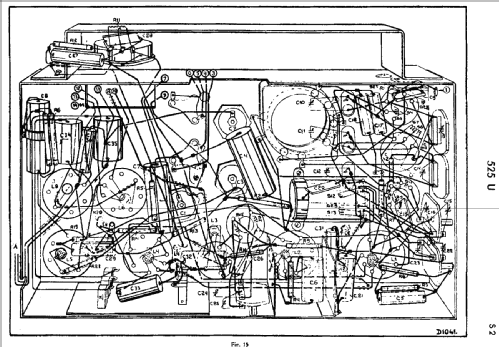

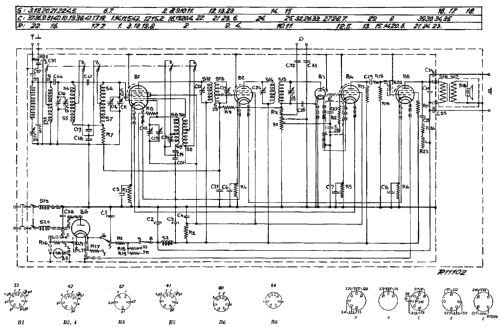

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Timo Rantasaari. See "Data change" for further contributors.
