Multi-Inductance 536A

Multi-Inductance 536A; Philips; Eindhoven (ID = 39367) Radio

Multi-Inductance 536A; Philips; Eindhoven (ID = 39368) Radio
Multi-Inductance 536A; Philips; Eindhoven (ID = 91450) Radio Multi-Inductance 536A; Philips; Eindhoven (ID = 401428) Radio
Multi-Inductance 536A; Philips; Eindhoven (ID = 118110) Radio Multi-Inductance 536A; Philips; Eindhoven (ID = 1614808) Radio
Multi-Inductance 536A; Philips; Eindhoven (ID = 1614810) Radio Multi-Inductance 536A; Philips; Eindhoven (ID = 1614811) Radio
Multi-Inductance 536A; Philips; Eindhoven (ID = 1784344) Radio Multi-Inductance 536A; Philips; Eindhoven (ID = 2022568) Radio
Multi-Inductance 536A; Philips; Eindhoven (ID = 2022569) Radio Multi-Inductance 536A; Philips; Eindhoven (ID = 2022570) Radio
Use red slider bar for more.
Multi-Inductance 536A; Philips; Eindhoven (ID = 91450) Radio

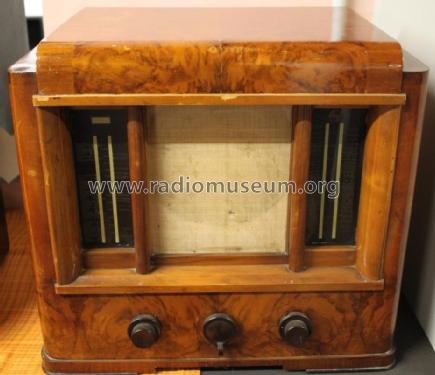

Philips; Eindhoven: Multi-Inductance 536A [Radio] ID = 91450 661x596
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multi-Inductance 536A, Philips; Eindhoven (tubes international!); Miniwatt:
Kaunas, Lithuania

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF3 AK2 AF3 ABC1 AL2 AZ1
Main principle Superhet with RF-stage; ZF/IF 115 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Multi-Inductance 536A - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 460 x 320 mm / 19.3 x 18.1 x 12.6 inch
Notes

Philips Modell 536A hat variable Bandbreite und Feldstärke-Anzeige mit einem Transduktor (Saturable-core reactor). Siehe Ausführungen über das Prinzip, Kapitel 4.

Eine Quelle gibt nur 5 Röhren an (die zweite AF3 fehlt).

Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Price in first year of sale 275.00 FL
Source of data Overzicht v.de toe te p PHILIPS
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
