Philips Type 536A

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1935 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF3 AK2 AF3 ABC1 AL2 AZ1
Main principle Superhet with RF-stage; ZF/IF 115 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 536A - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 460 x 320 mm / 19.3 x 18.1 x 12.6 inch
Notes

Philips Modell 536A hat variable Bandbreite und Feldstärke-Anzeige mit einem Transduktor (Saturable-core reactor). Siehe Ausführungen über das Prinzip, Kapitel 4.

Source of data Radiokatalog Band 1, Ernst Erb

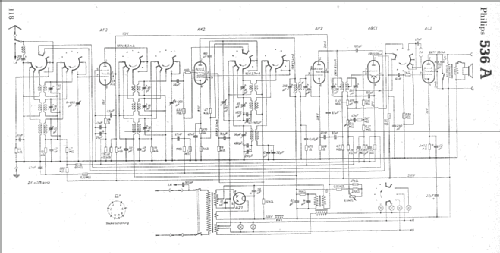

Circuit diagram reference Lange + FS-Bestückungstabellen
