548A

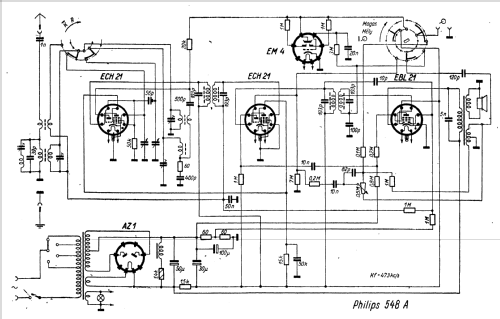

548A; Philips; Budapest (ID = 233594) Radio
548A; Philips; Budapest (ID = 504880) Radio 548A; Philips; Budapest (ID = 396998) Radio
548A; Philips; Budapest (ID = 658751) Radio 548A; Philips; Budapest (ID = 1246074) Radio
548A; Philips; Budapest (ID = 1246075) Radio 548A; Philips; Budapest (ID = 1246076) Radio
548A; Philips; Budapest (ID = 1246077) Radio 548A; Philips; Budapest (ID = 1421660) Radio
548A; Philips; Budapest (ID = 1421663) Radio 548A; Philips; Budapest (ID = 1421666) Radio
Use red slider bar for more.

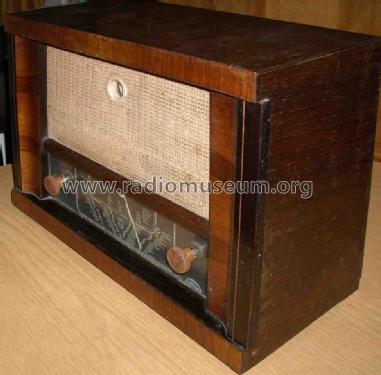

548A; Philips; Budapest (ID = 504880) Radio
Philips; Budapest: 548A [Radio] ID = 504880 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 548A, Philips; Budapest

Country:  Hungary
Manufacturer / Brand:  Philips; Budapest
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 ECH21 EBL21 AZ1 EM4
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 548A - Philips; Budapest
Material Wooden case
Shape Tablemodel, with any shape - general.
Price in first year of sale 1'370.00 HUF
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
