616A

616A; Philips Belgium (ID = 486096) Radio

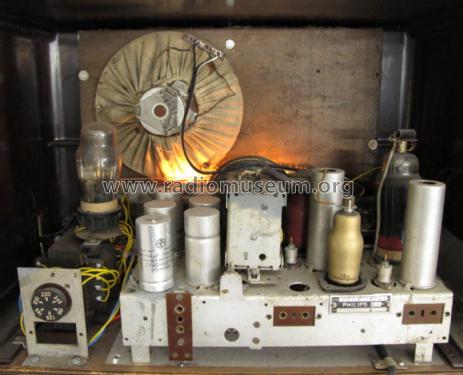

616A; Philips Belgium (ID = 833318) Radio 616A; Philips Belgium (ID = 833319) Radio
616A; Philips Belgium (ID = 833321) Radio 616A; Philips Belgium (ID = 833323) Radio
Use red slider bar for more.
616A; Philips Belgium (ID = 833318) Radio
Philips Belgium: 616A [Radio] ID = 833318 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 616A, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 616A - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 300 x 210 mm / 16.9 x 11.8 x 8.3 inch
Notes Philips Modell 480A und 616A verwenden den selben Schaltplan.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Literature/Schematics (1) -- Schematic
