Rhapsodie 627B

Rhapsodie 627B; Philips; Eindhoven (ID = 39653) Radio

Rhapsodie 627B; Philips; Eindhoven (ID = 39654) Radio

Rhapsodie 627B; Philips; Eindhoven (ID = 39655) Radio

Rhapsodie 627B; Philips; Eindhoven (ID = 39656) Radio
Rhapsodie 627B; Philips; Eindhoven (ID = 281368) Radio Rhapsodie 627B; Philips; Eindhoven (ID = 281369) Radio
Rhapsodie 627B; Philips; Eindhoven (ID = 386164) Radio Rhapsodie 627B; Philips; Eindhoven (ID = 1289496) Radio
Rhapsodie 627B; Philips; Eindhoven (ID = 1366230) Radio Rhapsodie 627B; Philips; Eindhoven (ID = 1366231) Radio
Rhapsodie 627B; Philips; Eindhoven (ID = 1366232) Radio Rhapsodie 627B; Philips; Eindhoven (ID = 1366234) Radio
Rhapsodie 627B; Philips; Eindhoven (ID = 2090758) Radio Rhapsodie 627B; Philips; Eindhoven (ID = 2090759) Radio
Use red slider bar for more.
Rhapsodie 627B; Philips; Eindhoven (ID = 281368) Radio
Philips; Eindhoven: Rhapsodie 627B [Radio] ID = 281368 789x500

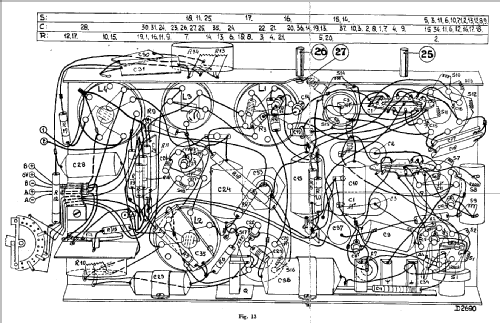

Select picture or schematic to display from thumbnails on the right and click for download.
For model Rhapsodie 627B, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: KK2 KF4 KB2 KL4
Main principle Superheterodyne (common); ZF/IF 128 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 / 135 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Rhapsodie 627B - Philips; Eindhoven tubes
Material Wooden case
Dimensions (WHD) 500 x 265 x 200 mm / 19.7 x 10.4 x 7.9 inch
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Price in first year of sale 108.00 FL
Source of data Overzicht v.de toe te p PHILIPS
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4981 models, 4169 with images and 3324 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
