64-A
Philips Ibérica,: 64-A [Radio] ID = 2052878 933x716
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1944/1945 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: ECH4 ECH4 EBL1 AZ1 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast plus 2 Short Wave bands. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: 64-A - Philips Ibérica, COPRESA, |
| Material | Wooden case |
| Shape | Tablemodel, with any shape - general. |
| Notes | Lleva dos bandas de OM, normal y con sensibilidad reducida para recepción de emisoras locales. |

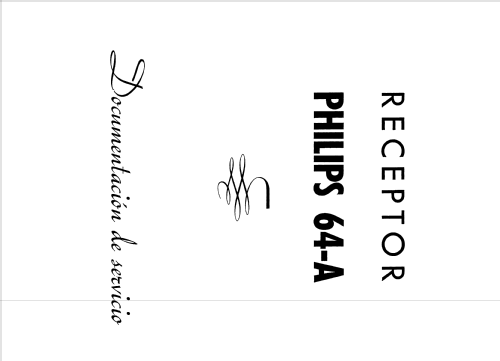

| Literature/Schematics (1) | -- Schematic |
Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
