• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146137

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EBF80 EF85 EM34 EABC80 EBC41 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 653A - Philips Electrical, Lamps,

• Notes

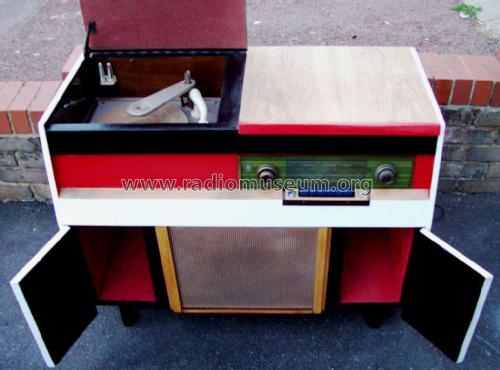

• Radiogram with AG1000 record unit. Same chassis as model 643A.

• Source of data
• -- Schematic

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
