- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1943–1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 205200

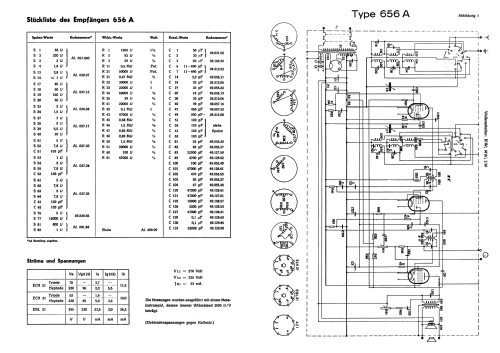

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 656A-40 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 400 x 275 x 185 mm / 15.7 x 10.8 x 7.3 inch
- Notes
- Dieses Model wurde in 1943-1944 von Gefangenen im "Philips-Kommando" im Lager Herzogenbusch (Kamp Vught) gebaut.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Timo Rantasaari. See "Data change" for further contributors.
