- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1944 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323979

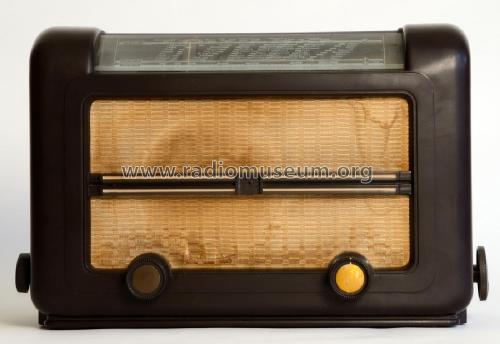

Picture from collection of Henk Beens (NL).

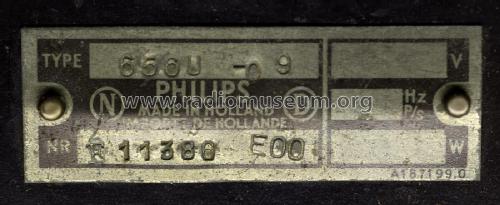

Picture from collection of Henk Beens (NL).

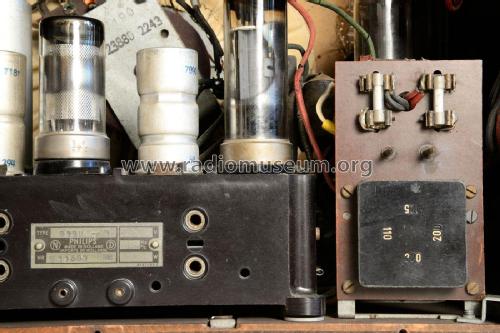

Picture from collection of Henk Beens (NL).

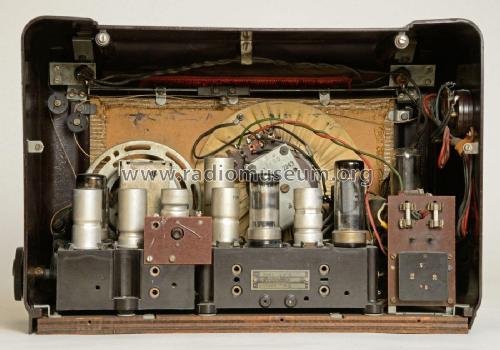

Picture from collection of Henk Beens (NL).

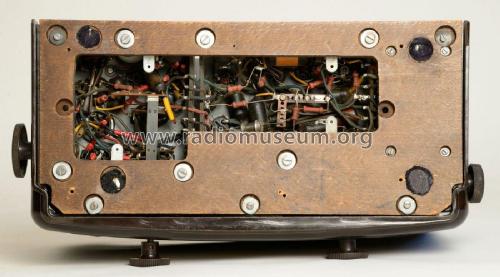

Picture from collection of Henk Beens (NL).
Picture from collection of Henk Beens (NL).
Picture from collection of Henk Beens (NL).
Picture from collection of Henk Beens (NL).
Picture from collection of Henk Beens (NL).
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 125; 200; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 656U-09 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 430 x 275 x 220 mm / 16.9 x 10.8 x 8.7 inch
- Notes
-
See also versions Philips 656U (-00) and 656U-19.
- Net weight (2.2 lb = 1 kg)
- 6.4 kg / 14 lb 1.6 oz (14.097 lb)
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
