For model 657A -06, Philips; Eindhoven (tubes international!); Miniwatt:
Stoff nicht original.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner

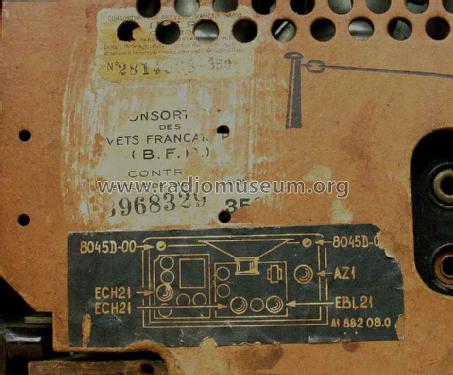

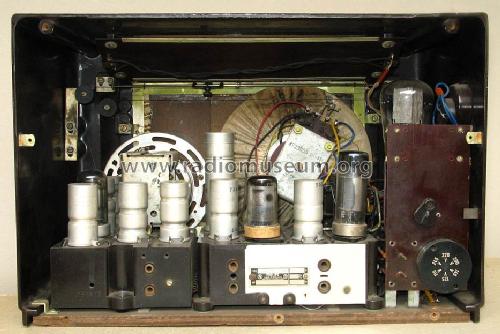

Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 657A -06 - Philips; Eindhoven tubes
Material Bakelite case

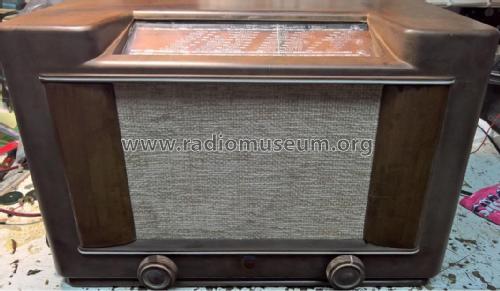

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 425 x 265 x 205 mm / 16.7 x 10.4 x 8.1 inch
Notes

SW 1: 48...175 m
SW 2: 13.7...51 m

See also base model 657A.

Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
