• Year
  • 1942/1943
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 317377

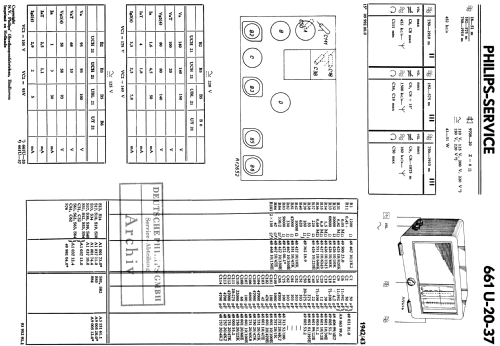

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 150; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 661U-37 - Philips; Eindhoven tubes
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 420 x 290 x 180 mm / 16.5 x 11.4 x 7.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 5.1 kg / 11 lb 3.7 oz (11.233 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
