• Country
• United States of America (USA)

• Manufacturer / Brand
• Philips USA

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196729

• Number of Tubes
• 6

• Valves / Tubes
• 6S7G 6D8G 6S7G 6T7G 6L5G 6V6GT

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

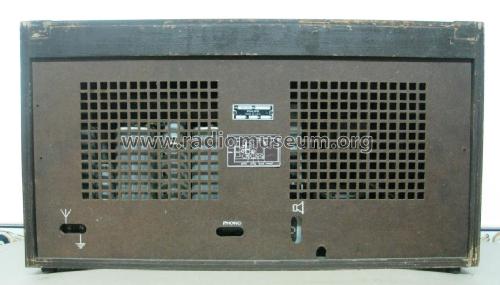

• Model: 664-VN - Philips USA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 330 x 290 mm / 23.2 x 13 x 11.4 inch

• Net weight (2.2 lb = 1 kg)
• 13.4 kg / 29 lb 8.2 oz (29.515 lb)

• Author
• Model page created by Gil Silva. See "Data change" for further contributors.
