- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 234330
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

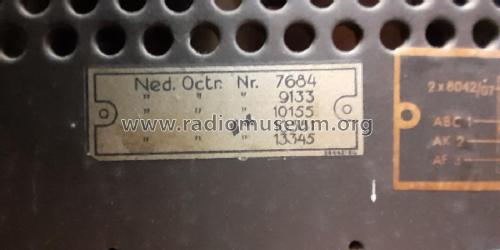

- Model: 695A-04 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 440 x 280 mm / 18.1 x 17.3 x 11 inch
- Notes
-
Die Ausführung 695A-04 ist fast gleich mit der Ausführung 695A-06. Unterschiede beziehen sich namentlich auf eine geänderte Konstruktion.
Beispiele:
- Sprach-Musik- und Antenne-Schalter
- Elektrolyt-Kondensatoren
- Transformatoren.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
