695A-12

695A-12; Philips; Eindhoven (ID = 452853) Radio

695A-12; Philips; Eindhoven (ID = 453004) Radio
695A-12; Philips; Eindhoven (ID = 449903) Radio 695A-12; Philips; Eindhoven (ID = 449906) Radio
695A-12; Philips; Eindhoven (ID = 455523) Radio 695A-12; Philips; Eindhoven (ID = 455522) Radio
695A-12; Philips; Eindhoven (ID = 449911) Radio 695A-12; Philips; Eindhoven (ID = 285660) Radio
695A-12; Philips; Eindhoven (ID = 285661) Radio 695A-12; Philips; Eindhoven (ID = 568380) Radio
695A-12; Philips; Eindhoven (ID = 568381) Radio 695A-12; Philips; Eindhoven (ID = 843280) Radio
Use red slider bar for more.
695A-12; Philips; Eindhoven (ID = 449903) Radio
Philips; Eindhoven: 695A-12 [Radio] ID = 449903 756x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 695A-12, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner

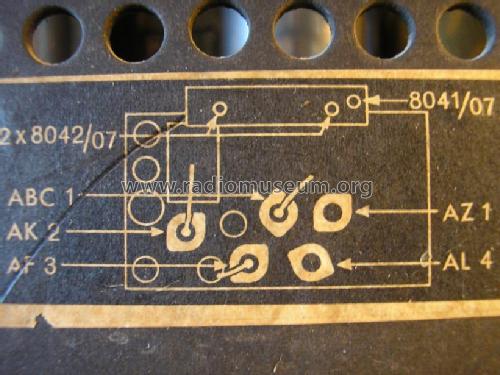

Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 148; 200; 220; 245; Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 695A-12 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 440 x 280 mm / 18.1 x 17.3 x 11 inch

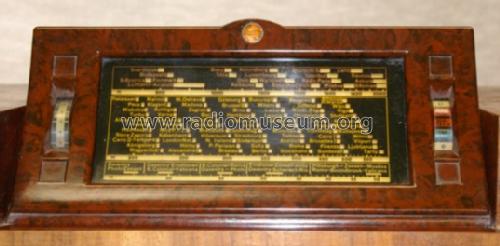

Notes Reclining tuning dial.

Scala parlante orientabile, con movimento basculante.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4859 models, 4070 with images and 3246 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
