735A; Philips Radios - (ID = 5228) Radio
735A; Philips Radios - (ID = 303804) Radio 735A; Philips Radios - (ID = 303806) Radio
735A; Philips Radios - (ID = 303807) Radio 735A; Philips Radios - (ID = 303805) Radio
735A; Philips Radios - (ID = 348220) Radio 735A; Philips Radios - (ID = 571131) Radio
735A; Philips Radios - (ID = 734277) Radio 735A; Philips Radios - (ID = 734278) Radio
735A; Philips Radios - (ID = 734279) Radio 735A; Philips Radios - (ID = 920198) Radio
Use red slider bar for more.
735A; Philips Radios - (ID = 303804) Radio

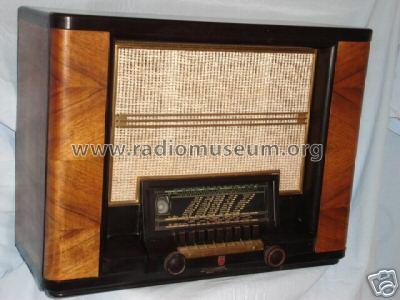

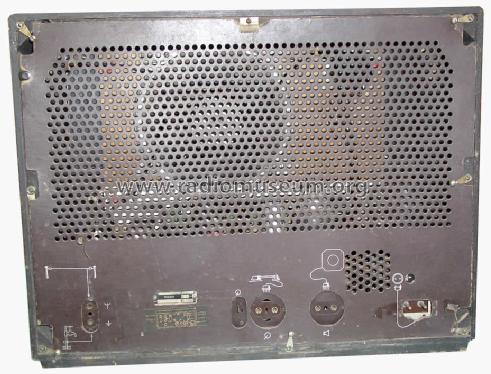

Philips Radios -: 735A [Radio] ID = 303804 710x515
Select picture or schematic to display from thumbnails on the right and click for download.
For model 735A, Philips Radios - Deutschland:
Kaunas Lithuania

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 EF9 EBL1 AZ1 EFM1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 735A - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes

Ausf.A32=ZF 118

Abstimmung über drei mechanisch parallele Abstimm-Tauchkondensatoren über den Tasten-Mechanismus mit hoher Wiederkehrgenauigkeit.

Aufwändige Gegenkopplung im NF Weg. Klangregler.

Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Funkgeschichte der GFGF (Heft 205, Oktober-November 2012 S.156ff - "Ein Radio erzählt Geschichte...")


All listed radios etc. from Philips Radios - Deutschland
Here you find 2508 models, 2235 with images and 1530 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
