• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29549

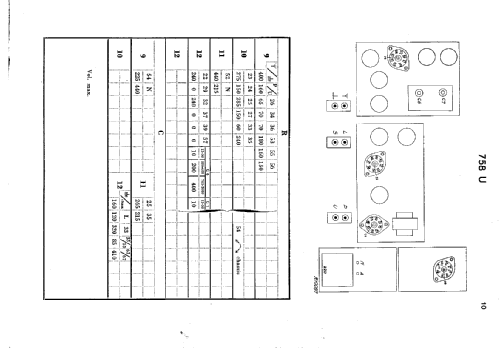

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

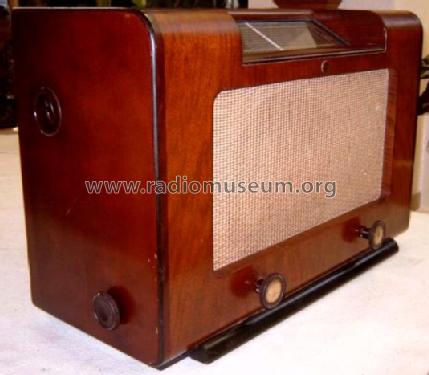

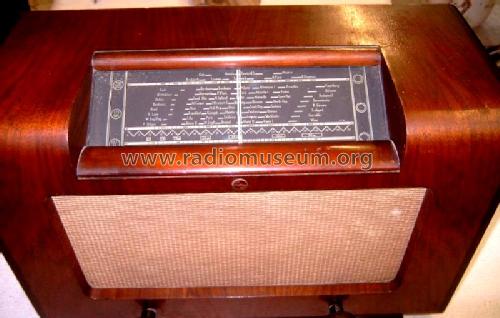

• Model: 758U /00 /03 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 335 x 230 mm / 20.5 x 13.2 x 9.1 inch

• Notes

• Philips 758U mit 2 Skalenampen 8095 D-00.

  Ausführung 758U /00:  Lautsprecher 9636U-55 (mit Erregerspule) für die erste Fertigung, später Lautsprecher 9636-05 (permanent magnetisch).

  Ausführung 758U /03: Lautsprecher 9636-05 (permanent magnetisch).

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 260.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
