• Country
• United States of America (USA)

• Manufacturer / Brand
• Philips USA

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 184177

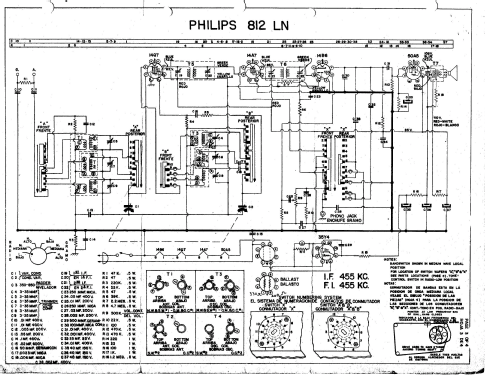

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

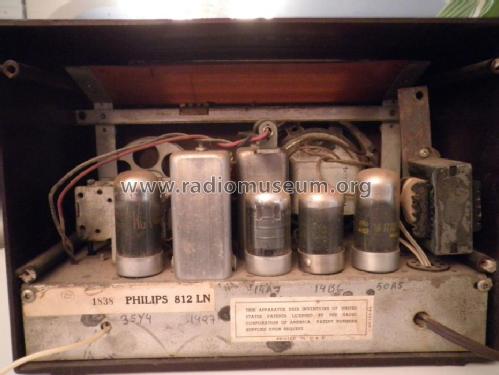

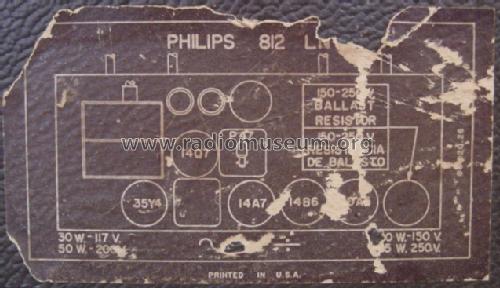

• Valves / Tubes
• 14Q7 14A7 14B6 50A5 35Y4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 100-135; 135-165; 185-230; 225-275 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org

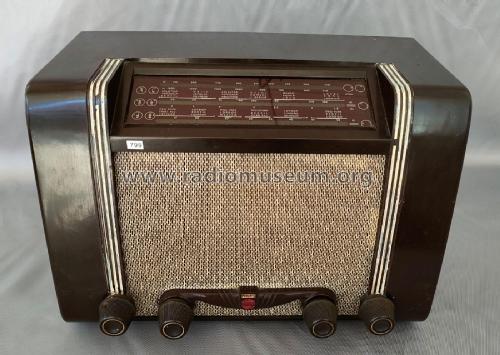

• Model: 812LN - Philips USA

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 295 x 202 x 172 mm / 11.6 x 8 x 6.8 inch

• Notes

• Wavebands:
  SW1 = 6.0 - 18 MHz
  SW2 = 1.8 - 6.0 MHz
  MW = 535 - 1800 kHz
  Local = 535 - 1800 kHz

  As other Philips radios made in the USA at this time, this device was destined for exportation to Southern Europe and/or South America, and, possibly, the Dutch West Indies (depending the date of release).

• Net weight (2.2 lb = 1 kg)
• 3.750 kg / 8 lb 4.2 oz (8.26 lb)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original prospect or advert (Diario de la marina, Cuba, 29 May 1950)

• Author
• Model page created by José Rei. See "Data change" for further contributors.
