A3X95A

A3X95A; Philips; Eindhoven (ID = 41705) Ampl/Mixer

A3X95A; Philips; Eindhoven (ID = 110796) Ampl/Mixer

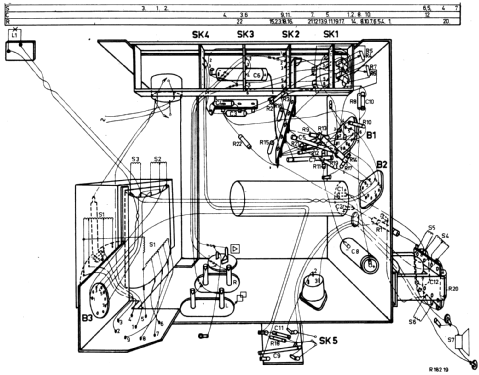

A3X95A; Philips; Eindhoven (ID = 1834359) Ampl/Mixer
A3X95A; Philips; Eindhoven (ID = 235448) Ampl/Mixer A3X95A; Philips; Eindhoven (ID = 235503) Ampl/Mixer
A3X95A; Philips; Eindhoven (ID = 285028) Ampl/Mixer A3X95A; Philips; Eindhoven (ID = 2122512) Ampl/Mixer
Use red slider bar for more.
A3X95A; Philips; Eindhoven (ID = 235448) Ampl/Mixer
Philips; Eindhoven: A3X95A [Ampl/Mixer] ID = 235448 640x371
Select picture or schematic to display from thumbnails on the right and click for download.
For model A3X95A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1959/1960 Category: Audio Amplifier or -mixer
Valves / Tubes 3: ECC83 EL86 EZ80
Main principle Audio-Amplification
Details
Power type and voltage Alternating Current supply (AC) / 90, 110, 127, 143, 165, 190, 220, 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 21 cm = 8.3 inch
Power out 6.5 W (unknown quality)
from Radiomuseum.org Model: A3X95A - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 452 x 207 x 173 mm / 17.8 x 8.1 x 6.8 inch
Notes Ausgangsimpedanz 800 Ohm
Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)

Model page created by Iven Müller. See "Data change" for further contributors.
