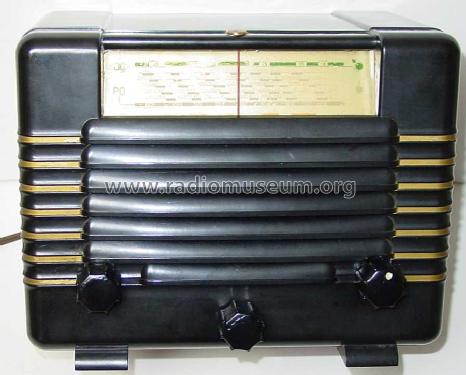

Super-Junior 43 A43U; Philips France; (ID = 1196450) Radio
Philips France;: Super-Junior 43 A43U [Radio] ID = 1196450 900x724
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Junior 43 A43U, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner

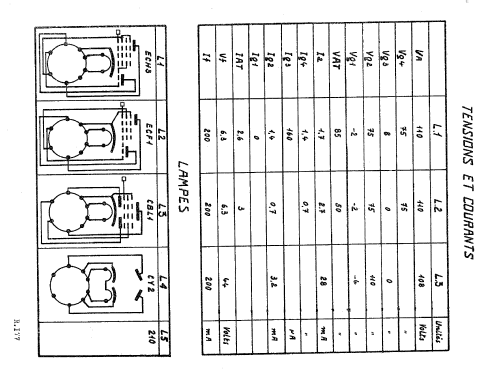

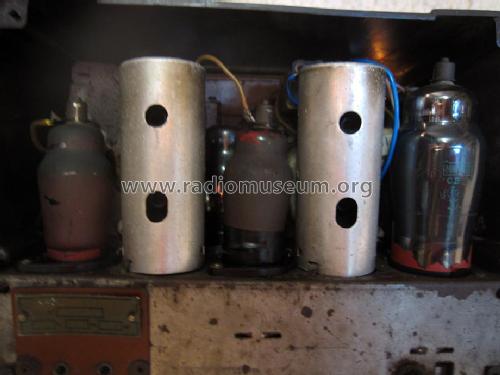

Valves / Tubes 4: ECH3 ECF1 CBL1 CY2
Semiconductors (the count is only for transistors) 210_Ballast
Main principle Super-Heterodyne (Super in general); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-130 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super-Junior 43 A43U - Philips France; Paris

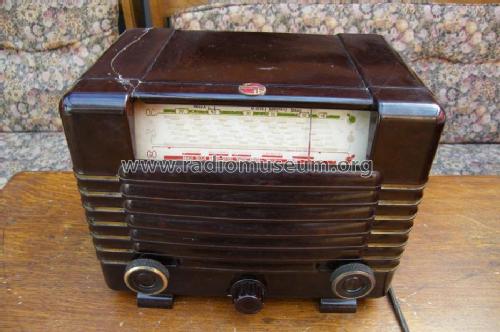

Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 238 x 186 x 170 mm / 9.4 x 7.3 x 6.7 inch
Notes

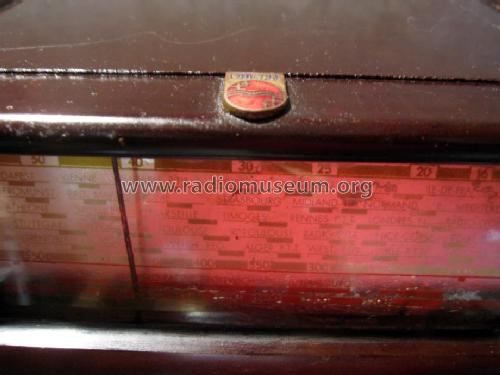

3 gammes d'ondes : OC de 16.7 à 51 m, PO de 185 à 570 m, GO de 1000 à 2000 m.

Mallette façon cuir sur demande.

Fonctionnement sur secteur 200-250 volts à l'aide de l'adjunction d'une résistance.

Voir aussi modèle Junior A42U avec 2 gammes d'ondes.
Équivalent au Radiola RA133U.

Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Collectors' prices
Mentioned in -- Original prospect or advert (Dépliant gamme 1940/41)
Literature/Schematics (1) Schémathèque Toute la Radio (STR) (No. 429)
Literature/Schematics (2) -- Original-techn. papers.
