• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83174

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 ECF1 CBL6 CY2

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-130 Volt

• Material
• Wooden case

• from Radiomuseum.org

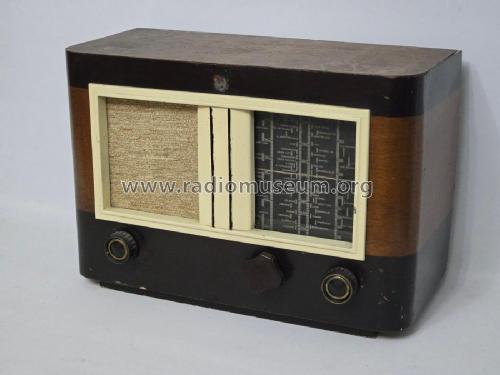

• Model: A448U - Philips France; Paris

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 350 x 240 x 160 mm / 13.8 x 9.4 x 6.3 inch

• Notes
• Dieses Modell ist elektrisch ähnlich Philips Modell A48U (aus 1942). Equivalant à la RADIOLA « RA538 U »

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
