• Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 207813

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage

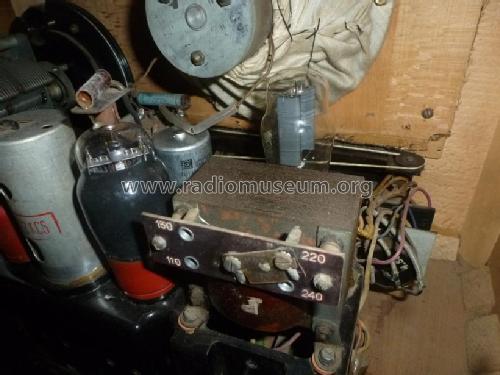

  • Alternating Current supply (AC) / 110; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

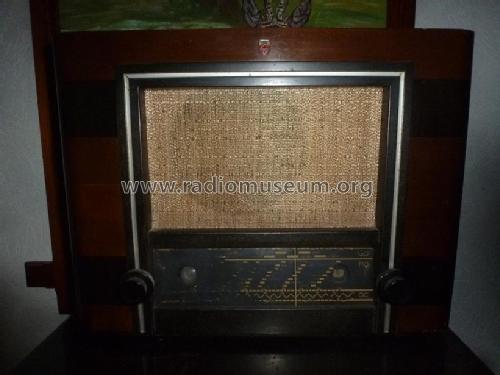

  • Model: A449A - Philips France; Paris
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 470 x 360 x 230 mm / 18.5 x 14.2 x 9.1 inch
  • Author
  • Model page created by Bekir Yurdakul. See "Data change" for further contributors.
