RA539A

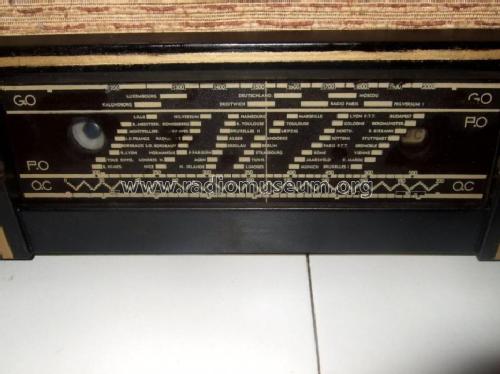

RA539A; Radiola marque (ID = 1129153) Radio RA539A; Radiola marque (ID = 1129154) Radio
RA539A; Radiola marque (ID = 1129156) Radio RA539A; Radiola marque (ID = 1129158) Radio
RA539A; Radiola marque (ID = 1129159) Radio RA539A; Radiola marque (ID = 1129160) Radio
RA539A; Radiola marque (ID = 1129161) Radio RA539A; Radiola marque (ID = 1129162) Radio
Use red slider bar for more.
RA539A; Radiola marque (ID = 1129153) Radio
Radiola marque: RA539A [Radio] ID = 1129153 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA539A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 ECF1 EBL1 AZ1 EM4
Main principle Superheterodyne (common); ZF/IF 472 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: RA539A - Radiola marque
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 360 x 230 mm / 18.5 x 14.2 x 9.1 inch
Notes Identique à Philips A449A.
Électronique & cadran sont 100% identique à celle de RA139A.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data Le grand livre de la TSF

Model page created by John Koster. See "Data change" for further contributors.
