Musikschrank A54 FD934A
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1953/1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 7083
-
- Brand: Deutsche Philips-Ges.
Q: Philips Service
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 11 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Details
- Changer + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- 4 Loudspeakers / Ø 32 cm = 12.6 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musikschrank A54 FD934A - Philips Radios - Deutschland
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 1495 x 853 x 480 mm / 58.9 x 33.6 x 18.9 inch
- Notes
- Mit elektrisch angetriebenen Schiebetüren. Chassis ähnlich Uranus 54, 2 Tieftöner, 2 Elektrostaten (110 mm), Plattenwechsler AG 1011 mit Pausentaste, Tonband KL25, mit Mikrophon EL 3925
- Net weight (2.2 lb = 1 kg)
- 98.5 kg / 216 lb 15.4 oz (216.96 lb)
- Price in first year of sale
- 2,800.00 DM
- Source of data
- Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 1, Ernst Erb

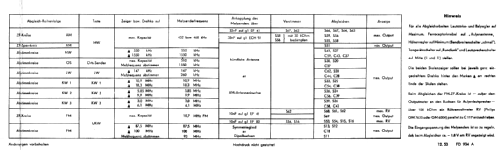

- Literature/Schematics (1)
- -- Original-techn. papers.
