AF Generator GM 2306

AF Generator GM 2306; Philips, Svenska AB, (ID = 1895062) Equipment AF Generator GM 2306; Philips, Svenska AB, (ID = 1895064) Equipment
AF Generator GM 2306; Philips, Svenska AB, (ID = 1895065) Equipment AF Generator GM 2306; Philips, Svenska AB, (ID = 1895067) Equipment
Use red slider bar for more.
AF Generator GM 2306; Philips, Svenska AB, (ID = 1895062) Equipment
Philips, Svenska AB,: AF Generator GM 2306 [Equipment] ID = 1895062 999x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model AF Generator GM 2306, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1960 ?? Category: Service- or Lab Equipment
Valves / Tubes 3: EF22 EBL21 AZ1
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: AF Generator GM 2306 - Philips, Svenska AB, Stockholm
Material Metal case
Dimensions (WHD) 300 x 190 x 145 mm / 11.8 x 7.5 x 5.7 inch
Notes

These tone generators were made in the Philips factory, Stockholm, Sweden,

these units was specially made for the Swedish market hence all text on the front is in Swedish, perhaps these were made for the Philips TV- and Radio repairshops?

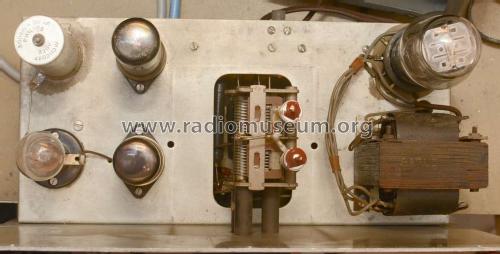

This particular unit has serial number 408, it also contains a light bulb for the oscillator, E12 socket, 250V and 15W.

There is also a version GM2306T with a round meter in the top left corner.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)

Model page created by Ludvig Rylander. See "Data change" for further contributors.
