• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1964/1965

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 71237

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECC83 EL95

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 1.7 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Electrophon AG4031 /22 SK51 - Philips Radios - Deutschland

• Dimensions (WHD)
• 302 x 200 x 110 mm / 11.9 x 7.9 x 4.3 inch

• Notes

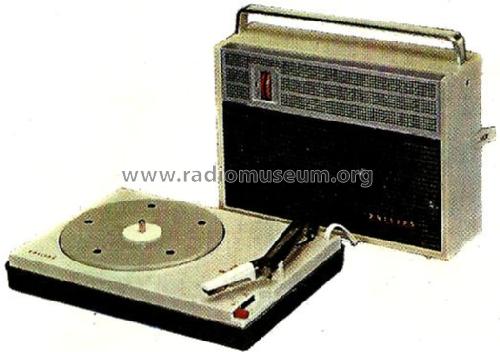

• Plattenspieler-Verstärkerkoffer Electrophon SK51 mit 33 und 45 U/min.
  Automatische Endabschaltung.
  Stereo-Kristall-System AG3306 für Normal-, Mikro- und Stereorillen,
  Duplo-Nadel 946/SS 50.
  Tonblende.

  Ausführungen: Grau, Rot, Blau.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 185.00 DM

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hilmer Grunert. See "Data change" for further contributors.
