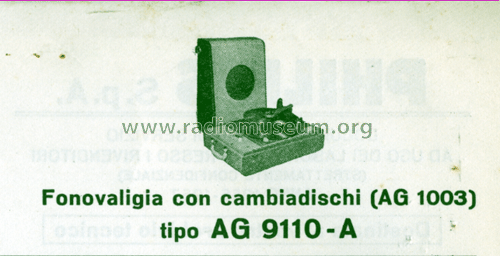

Fonovaligia AG9110-A Ch= AG1003

Philips Italy; Milano (MI)

  • Year
  • 1956
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 103463

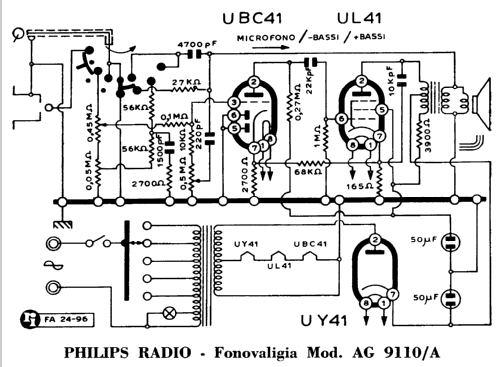

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220V Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Fonovaligia AG9110-A Ch= AG1003 - Philips Italy; Milano MI
  • Shape
  • Tablemodel, with any shape - general.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Rino Ferro † 2008. See "Data change" for further contributors.
