• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1964 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 85765

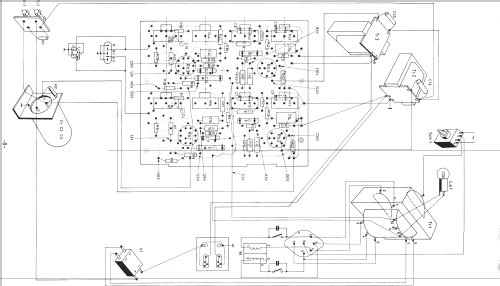

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC83 ECC83 EL95 EL95

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 7 inch = 17.8 cm

• Power out
• 4 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Electrophon WK 100 AG9125 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 380 x 380 x 210 mm / 15 x 15 x 8.3 inch

• Notes
• Wechsler-Koffer mit Stereo-NF-Verstärker mit 2 Endstufen je 2 W, Reibradantrieb

• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
