AL4400H

AL4400H; Philips Argentina, (ID = 1859164) Radio AL4400H; Philips Argentina, (ID = 1859163) Radio
AL4400H; Philips Argentina, (ID = 1859165) Radio AL4400H; Philips Argentina, (ID = 1859166) Radio
AL4400H; Philips Argentina, (ID = 1859168) Radio AL4400H; Philips Argentina, (ID = 1859169) Radio
AL4400H; Philips Argentina, (ID = 1859170) Radio
Use red slider bar for more.

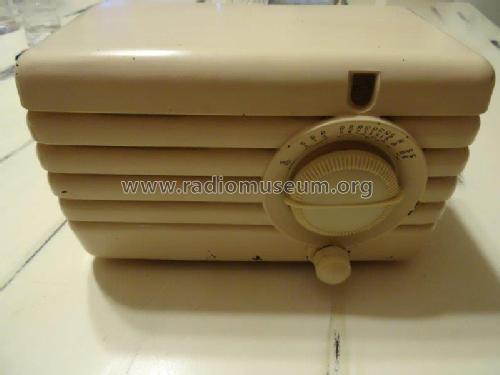

AL4400H; Philips Argentina, (ID = 1859164) Radio
Philips Argentina,: AL4400H [Radio] ID = 1859164 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL4400H, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH41 UAF41 UAF41 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.2 W (undistorted)
from Radiomuseum.org Model: AL4400H - Philips Argentina, FAPESA,
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 265 x 165 x 160 mm / 10.4 x 6.5 x 6.3 inch
Notes

Muy similar a el modelo AL4600H.

Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)

Model page created by Hector Ruben Menendez. See "Data change" for further contributors.
