• Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 182236

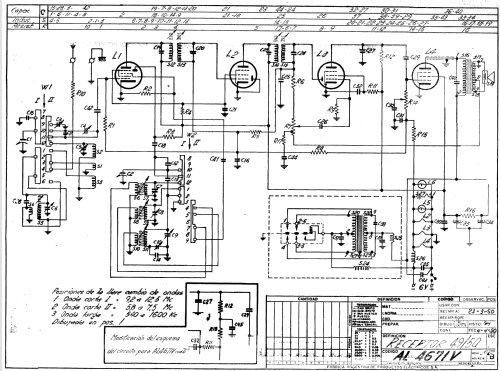

Click on the schematic thumbnail to request the schematic as a free document.

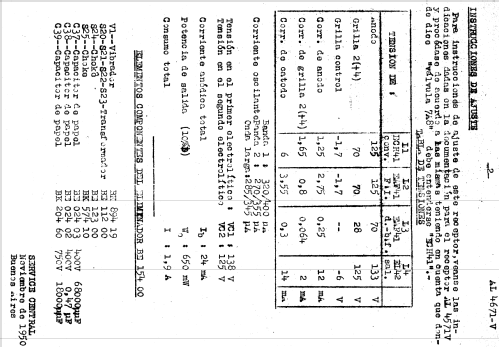

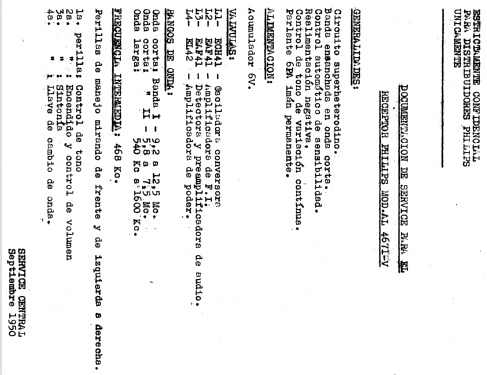

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

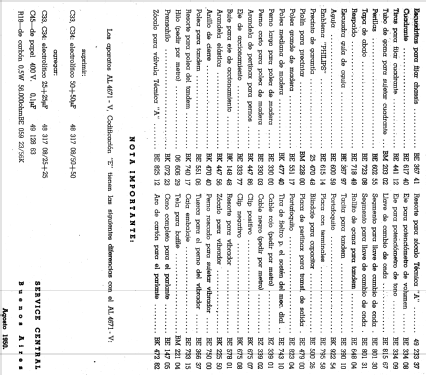

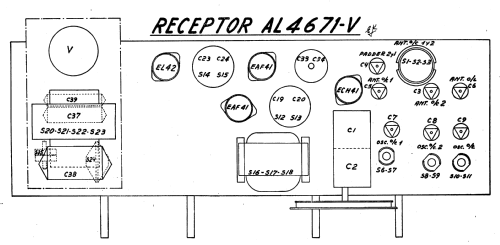

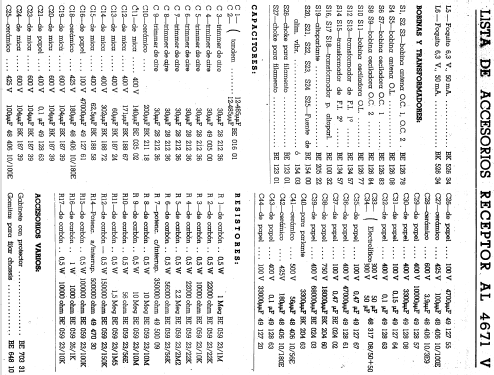

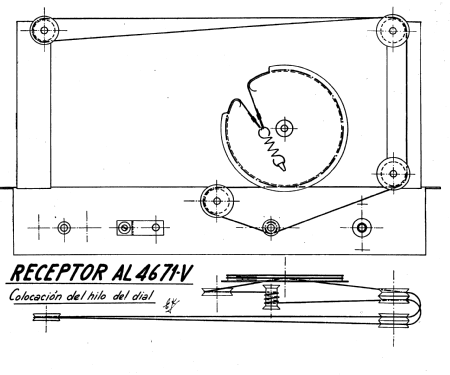

  • Model: AL4671-V - Philips Argentina, FAPESA,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • SW1: 9.2 to 12.5 MHz.
    SW2: 5.8 to 7.5 MHz.
    Dial light 6.3 Volt 50mA. (x 2)
    Audio Stage with Negative Feedback.
    Philips Argentina AL4671-V uses a synchronous vibrator for +B.
