AL4700-H

AL4700-H; Philips Argentina, (ID = 815025) Radio

AL4700-H; Philips Argentina, (ID = 815038) Radio

AL4700-H; Philips Argentina, (ID = 815042) Radio

AL4700-H; Philips Argentina, (ID = 815043) Radio

AL4700-H; Philips Argentina, (ID = 815044) Radio

AL4700-H; Philips Argentina, (ID = 815045) Radio

AL4700-H; Philips Argentina, (ID = 815046) Radio

AL4700-H; Philips Argentina, (ID = 815047) Radio
AL4700-H; Philips Argentina, (ID = 815065) Radio AL4700-H; Philips Argentina, (ID = 815063) Radio
AL4700-H; Philips Argentina, (ID = 815066) Radio
Use red slider bar for more.
AL4700-H; Philips Argentina, (ID = 815065) Radio
Philips Argentina,: AL4700-H [Radio] ID = 815065 933x676
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL4700-H, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF41 UAF41 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AL4700-H - Philips Argentina, FAPESA,

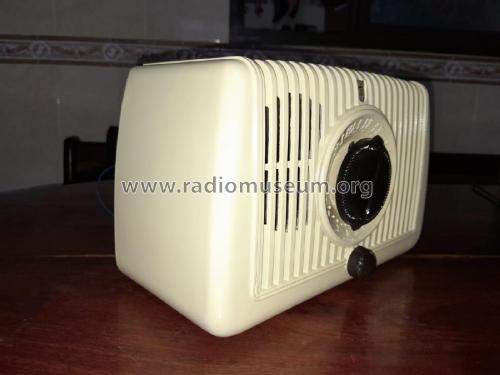

Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 275 x 130 x 180 mm / 10.8 x 5.1 x 7.1 inch
Notes Dial lamp 20 Volt 100mA. BK 526 35
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Jorge Mochkovsky. See "Data change" for further contributors.
