AL-B31V

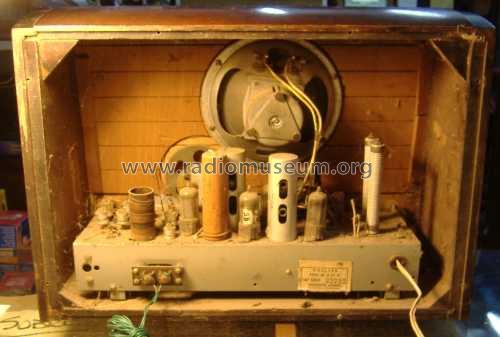

AL-B31V; Philips Argentina, (ID = 690226) Radio AL-B31V; Philips Argentina, (ID = 690227) Radio

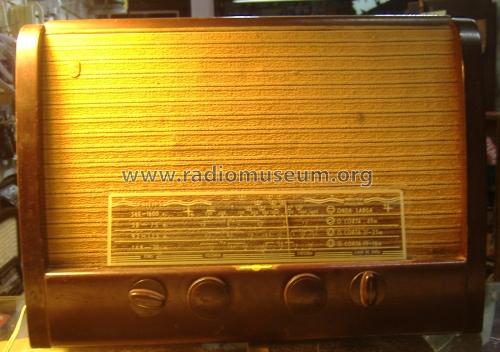

AL-B31V; Philips Argentina, (ID = 690225) Radio
Use red slider bar for more.

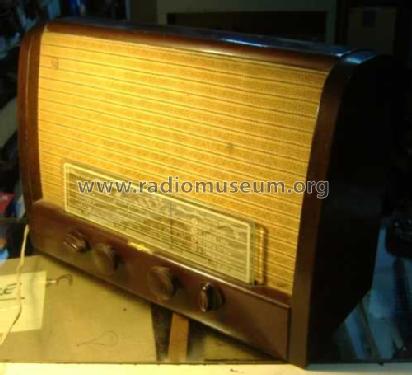

AL-B31V; Philips Argentina, (ID = 690226) Radio
Philips Argentina,: AL-B31V [Radio] ID = 690226 500x455
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL-B31V, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1948 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH42 EAF42 EAF42 EL42
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 4 W (unknown quality)
from Radiomuseum.org Model: AL-B31V - Philips Argentina, FAPESA,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 300 x 250 mm / 23.6 x 11.8 x 9.8 inch
Notes Philips Argentina AL-B31V; BC and three short wave bands:
5.8-7.5 MHz
9.2-12.5 MHz
14.9-20 MHz.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)

Model page created by Juan Carlos FRANCO. See "Data change" for further contributors.
