ALC21-V

• Country
• Argentina

• Manufacturer / Brand
• Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181418

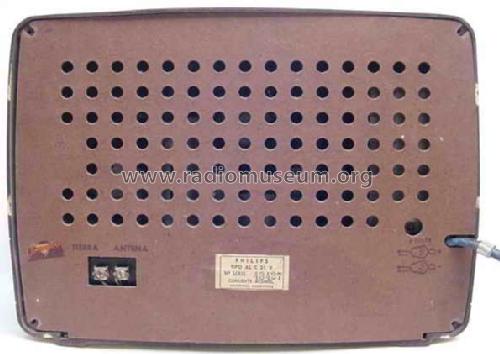

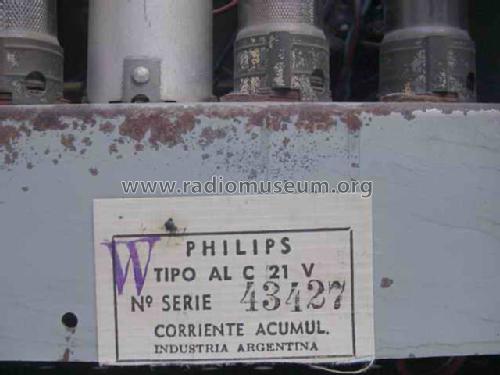

• Picture

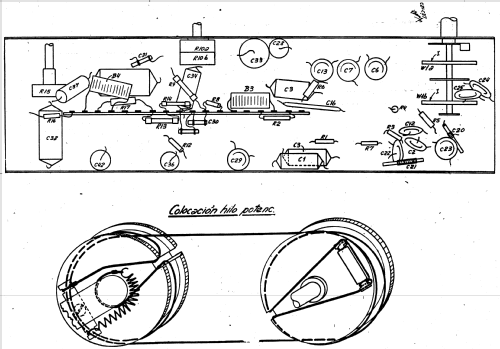

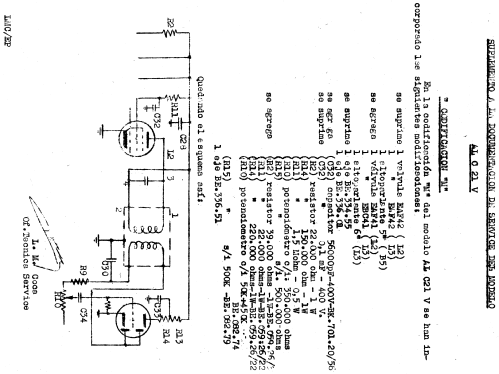

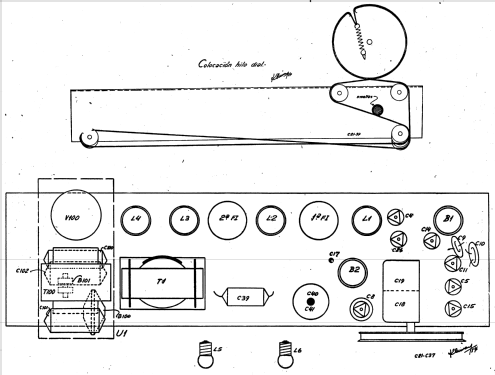

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH42 EAF42 EAF42 EL42

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.6 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: ALC21-V - Philips Argentina, FAPESA,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Philips Argentina ALC21-V uses a synchronous vibrator for +B.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

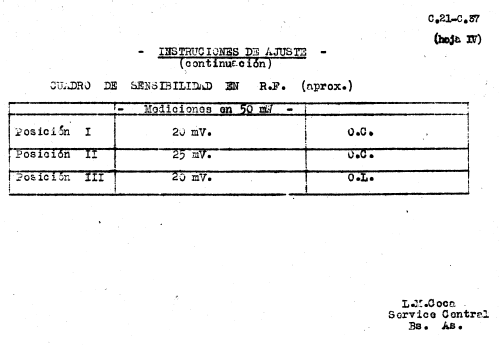

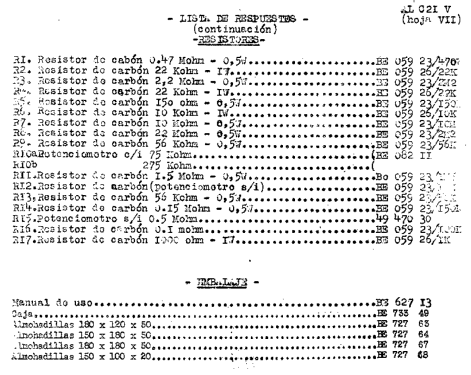

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Jorge Mochkovsky. See "Data change" for further contributors.
