• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1963

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 140242

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC81 EL84 E83F ECC83 EL84 GZ34 150C1K 90C1 85A2 85A2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

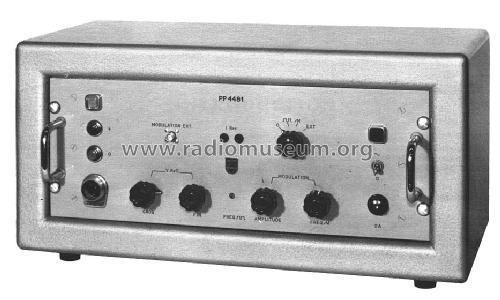

• Model: Alimentation stabilisée PP 4481 - Philips France; Paris

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 580 x 280 x 340 mm / 22.8 x 11 x 13.4 inch

• Notes
• Alimentation stabilisée pour Klystron 3 cm.

• Net weight (2.2 lb = 1 kg)
• 18.5 kg / 40 lb 12 oz (40.749 lb)

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur mars 1963

• Literature/Schematics (4)
• -- Original-techn. papers.

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
