Ariston Automatic Luxus 23TA340A /01B Ch= S8a

Ariston Automatic Luxus 23TA340A /01B Ch= S8a; Philips - Österreich (ID = 248694) Television

Ariston Automatic Luxus 23TA340A /01B Ch= S8a; Philips - Österreich (ID = 248695) Television

Ariston Automatic Luxus 23TA340A /01B Ch= S8a; Philips - Österreich (ID = 1984228) Television
Ariston Automatic Luxus 23TA340A /01B Ch= S8a; Philips - Österreich (ID = 140261) Television Ariston Automatic Luxus 23TA340A /01B Ch= S8a; Philips - Österreich (ID = 510347) Television
Use red slider bar for more.
Ariston Automatic Luxus 23TA340A /01B Ch= S8a; Philips - Österreich (ID = 140261) Television
Philips - Österreich: Ariston Automatic Luxus 23TA340A /01B Ch= S8a [Television] ID = 140261 496x384

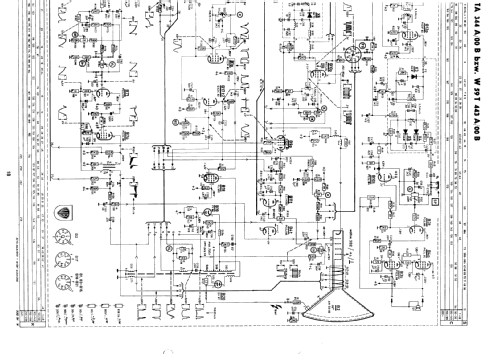

Select picture or schematic to display from thumbnails on the right and click for download.
For model Ariston Automatic Luxus 23TA340A /01B Ch= S8a, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1962/1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: PC88 PC86 PCC189 PCF86 EF183 EF184 EF184 PCL84 PCF80 PCF80 PCL85 PCL86 PCF80 ECH83 PCF80 ECC82 PF86 PCL85 PCF80 PL500 PY88 DY87 AW59-91
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Ariston Automatic Luxus 23TA340A /01B Ch= S8a - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 542 x 360 mm / 23.6 x 21.3 x 14.2 inch
Notes

Fernsehband VHF (I+III), UHF (IV/V). 59-cm-Rechteckbildröhre.
Ausführungen: Kassette dunkel und hell.
Modelle: nur UHF-vorbereitet 6690.- öS;
Zeilenfrei und UHF-vorbereitet 6850.- öS;
Zeilenfrei mit UHF 7450.- öS.
Kabelfernbedienung AT6320/03.

Paralleltype zum Horny W59T043A/01B.

Price in first year of sale 7'290.00 öS
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
