Automatic Cassette Recorder Lucky Hit N2208 /05

Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2112458) R-Player

Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2113235) R-Player

Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2113236) R-Player

Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2113237) R-Player

Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2113238) R-Player

Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2113239) R-Player

Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2113337) R-Player

Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2113338) R-Player

Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2113339) R-Player
Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2112486) R-Player Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2091674) R-Player
Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2091675) R-Player Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2091677) R-Player
Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2091679) R-Player Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2091680) R-Player
Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2091681) R-Player Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2113325) R-Player
Use red slider bar for more.
Automatic Cassette Recorder Lucky Hit N2208 /05; Philips - Österreich (ID = 2112486) R-Player
Philips - Österreich: Automatic Cassette Recorder Lucky Hit N2208 /05 [R-Player] ID = 2112486 1400x1085
Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatic Cassette Recorder Lucky Hit N2208 /05, Philips - Österreich:
Gerät steht im Philips Museum in Eindhoven

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1976/1977 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: BC549 BC548 BC548 BC548 TCA760 TCA900
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110-127; 220-240 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Automatic Cassette Recorder Lucky Hit N2208 /05 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 160 x 60 mm / 9.4 x 6.3 x 2.4 inch
Notes

PHILIPS Automatic Cassette Recorder mod. N2208/05 - controllo volume - tasti start/stop/wind/rewind/rec - microfono "electret" incorporato - maniglia di trasporto - uscita micro/radio/phono - consumo 3 watt.

see also N 2208 /01

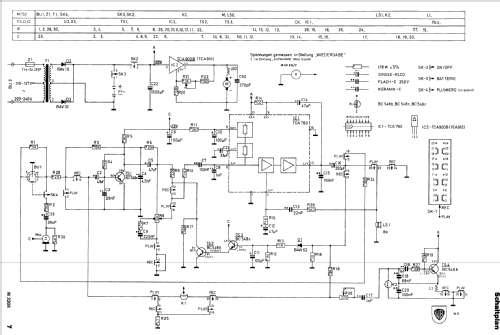

Specifications and type label only mention 220V mains operation, but according to the schematic a tap may be available for 110V.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Literature/Schematics (1) -- Original-techn. papers. (Philips Katalog 1976)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
