Autoradio NF524V

Autoradio NF524V; Philips France; (ID = 1483782) Car Radio Autoradio NF524V; Philips France; (ID = 1483796) Car Radio

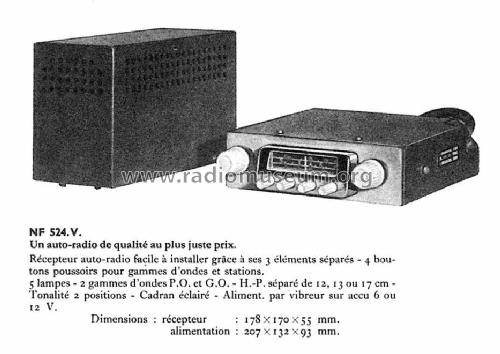

Autoradio NF524V; Philips France; (ID = 1486888) Car Radio
Use red slider bar for more.
Autoradio NF524V; Philips France; (ID = 1483782) Car Radio
Philips France;: Autoradio NF524V [Car Radio] ID = 1483782 699x474
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autoradio NF524V, Philips France; Paris:
Prospeto da marca

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1952–1955 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: EF41 ECH42 EAF42 EBC41 EL41
Main principle Superhet with RF-stage; ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Autoradio NF524V - Philips France; Paris
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 55 x 170 mm / 7 x 2.2 x 6.7 inch
Notes

Accord par bouton et 4 poussoirs. Contrôle de tonalité 2 positions. Cadran fixe éclairé.

Coffret de alimentation séparé (dimensions 207 x 132 x 93 mm), possibilité d'adjoindre l'adaptateur d'ondes courtes AF7510.

Équivalent au Radiola RA425V.

Mentioned in -- Original prospect or advert
Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 2263)
Literature/Schematics (2) -- Original prospect or advert (Dépliant Série Super-Magnétique 1955)

Model page created by João-Afonso Santos. See "Data change" for further contributors.
