B2I20A

B2I20A; Philips Italy; (ID = 1020623) Radio

B2I20A; Philips Italy; (ID = 1110446) Radio

B2I20A; Philips Italy; (ID = 1110447) Radio

B2I20A; Philips Italy; (ID = 1110448) Radio
B2I20A; Philips Italy; (ID = 2383967) Radio B2I20A; Philips Italy; (ID = 2383969) Radio
B2I20A; Philips Italy; (ID = 2383968) Radio B2I20A; Philips Italy; (ID = 2383970) Radio
B2I20A; Philips Italy; (ID = 2383971) Radio B2I20A; Philips Italy; (ID = 1012324) Radio
B2I20A; Philips Italy; (ID = 1012326) Radio B2I20A; Philips Italy; (ID = 1012325) Radio
Use red slider bar for more.
B2I20A; Philips Italy; (ID = 2383967) Radio
Philips Italy;: B2I20A [Radio] ID = 2383967 933x622
Select picture or schematic to display from thumbnails on the right and click for download.

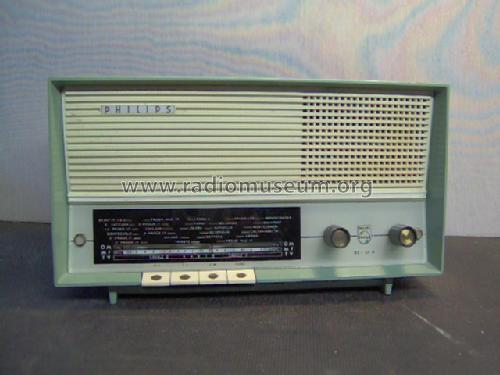

For model B2I20A, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner

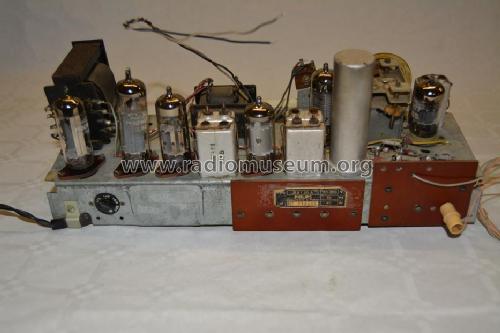

Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL84 UY85
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out
from Radiomuseum.org Model: B2I20A - Philips Italy; Milano MI
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 310 x 160 x 170 mm / 12.2 x 6.3 x 6.7 inch
Notes

Autotrafo, keine Netztrennung !!!

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Pasquale Baiocato. See "Data change" for further contributors.



All listed radios etc. from Philips Italy; Milano (MI)
Here you find 370 models, 306 with images and 229 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
