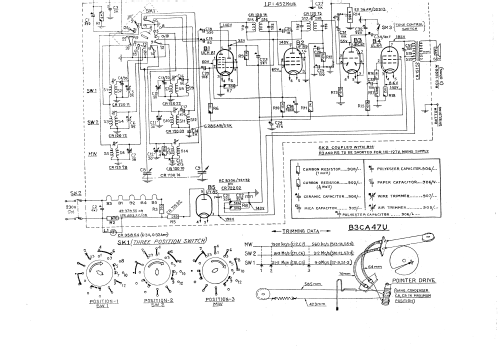

Select picture or schematic to display from thumbnails on the right and click for download.
For model B3CA47U, Philips; Calcutta:

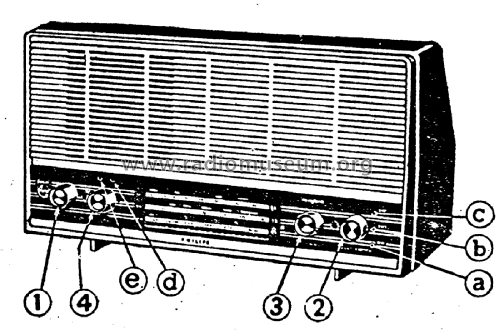

pic taken from serv doc, no other source available please consider as front picture as done for model B2CA99U

Country:  India
Manufacturer / Brand:  Philips; Calcutta
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF89 UBC81 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B3CA47U - Philips; Calcutta
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

Speaker type: RCD1400W (Z = 3 ohms).

Wave bands:
MW:  185 - 580 m
SW1: 13.3 - 36.6 m
SW2: 31 - 100 m

Power consumption: 50 W.

See also the domestic Dutch model B3X00U from 1960.

Mentioned in -- Original-techn. papers.

Model page created by Robert Kooijman. See "Data change" for further contributors.
