For model B3F63A AM.FM - BF363A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1956/1957 perfect model Category: Broadcast Receiver - or past WW2 Tuner

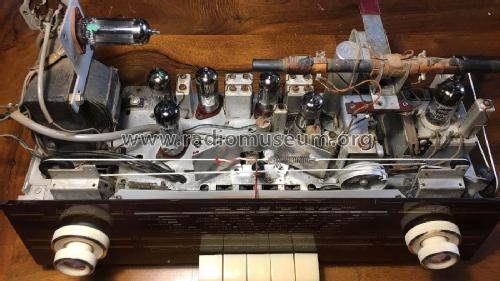

Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EF85 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220 Volt

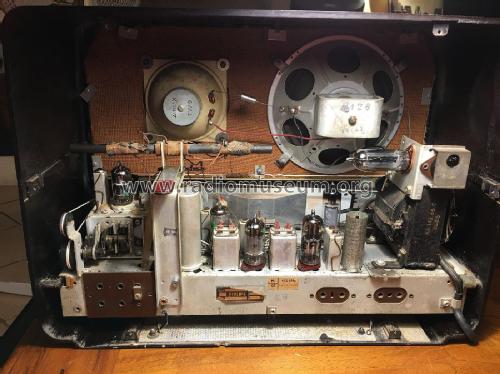

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: B3F63A AM.FM - BF363A - Philips France; Paris

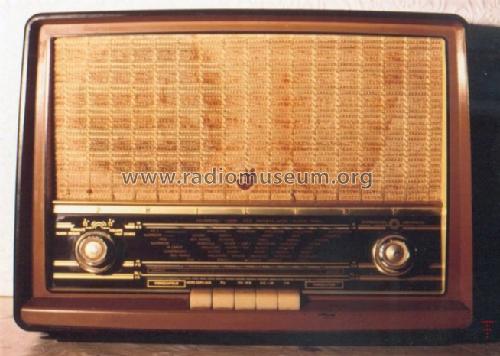

Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 418 x 305 x 210 mm / 16.5 x 12 x 8.3 inch
Notes

3 gammes d'ondes : FM de 87.5 à 100 MHz, PO de 185 à 580 m, et GO de 1150 à 2000 m. Cadre ferrocapteur orientable. Tonalité continue. HP type FD 040 63 (Z = 5 ohms). Lampe cadran 8024N-91.

Coffret en bakélite.

Le type BF363A est seulement mentionné dans les publicités; réellement le modèle est désigné B3F63A.

Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Collectors' prices

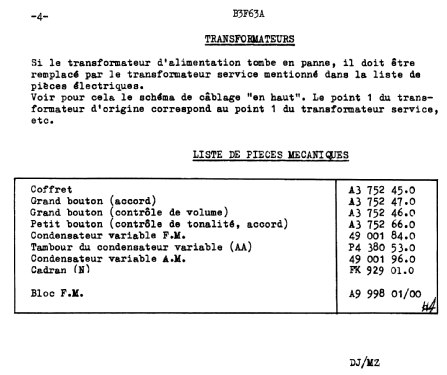

Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original prospect or advert

Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.
