B3S16T Ch= T8A

• Country
• Sweden

• Manufacturer / Brand
• Philips, Svenska AB, Stockholm

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 271865

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• OC171 OC171 OC169 OC169 OC169 OC71 OC71 OC74 OC74 OA79 OA79 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 460/6750 kHz

• Tuned circuits
• 7 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

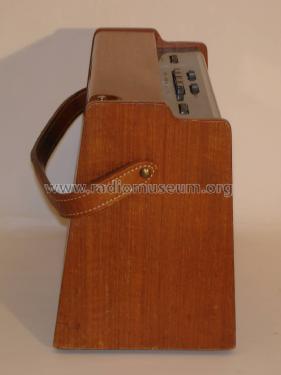

• Model: B3S16T Ch= T8A - Philips, Svenska AB, Stockholm

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 200 x 140 mm / 12.2 x 7.9 x 5.5 inch

• Notes

• SW: 31 .. 19 m
  FM: 87.5 ... 100 MHz

  Transformerless output using both OC74 as quasi complementary amplifier stage,
  12Ω speaker connected between output and center of 4.5 V batteries.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
