B3SF92A; Philips Finland - (ID = 2055552) Radio
Philips Finland -: B3SF92A [Radio] ID = 2055552 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3SF92A, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner

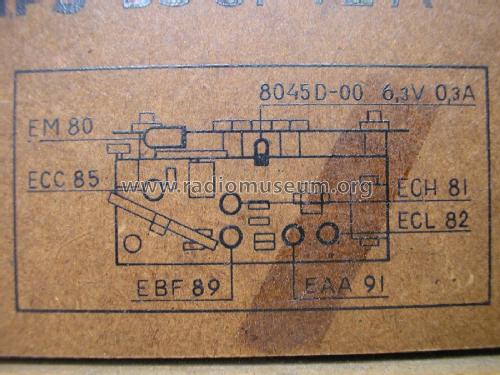

Valves / Tubes 6: ECC85 ECH81 EBF89 EAA91 EM80 ECL82
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: B3SF92A - Philips Finland - see also
Material Wooden case

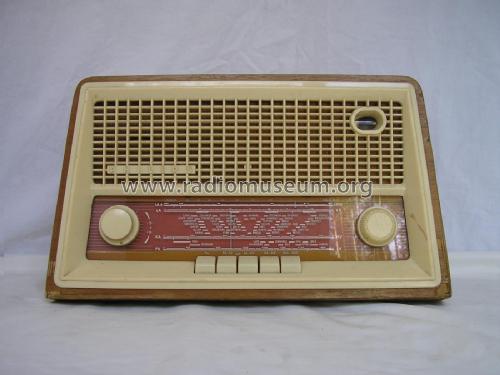

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 382 x 227 x 192 mm / 15 x 8.9 x 7.6 inch
Notes

Rectifier: Siemens B155C120

Dial lamps: 8045D-00

Model page created by Timo Rantasaari. See "Data change" for further contributors.
