For model B3X36A /00E /00X, Philips Belgium (Belgien):
My own collection

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 EBC81 EL84 DM71 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: B3X36A /00E /00X - Philips Belgium Belgien
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 360 x 221 x 184 mm / 14.2 x 8.7 x 7.2 inch
Notes 3 KW-Bereiche

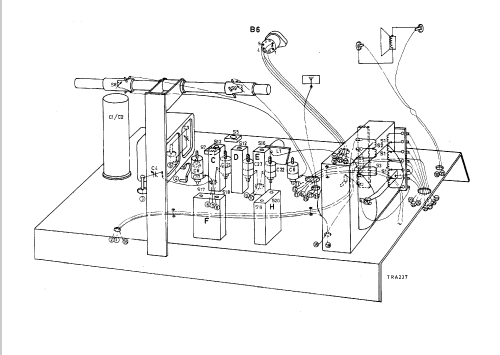

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
