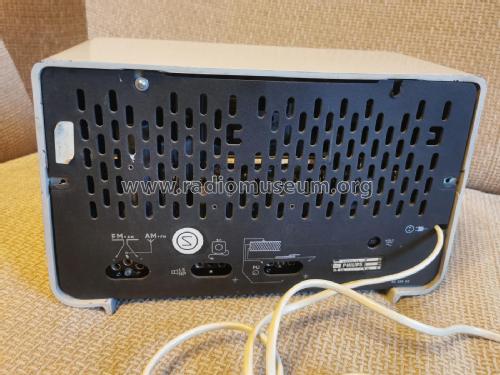

B3X82U

• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29667

• Picture
• Schematics

Previous Next

Previous Next

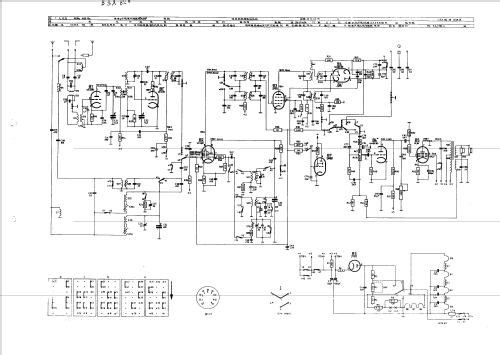

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UM80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 110-127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org

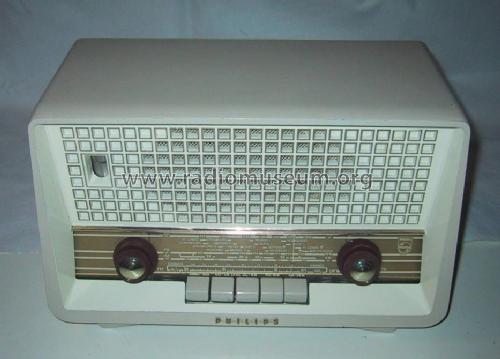

• Model: B3X82U - Philips Belgium Belgien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 333 x 201 x 172 mm / 13.1 x 7.9 x 6.8 inch

• Notes

• FM/AM radio with built-in ferroceptor:

  • LW: 150 - 340 kHz.
  • BC: 517 - 1610 kHz.
  • SW: 6 - 12 MHz.
  • FM 87,5 - 100 MHz
  Oval loudspeaker AD2460X.

  Dial lamps: 8073D-00 (6,3V / 100mA).

• Price in first year of sale
• 228.00 HFL

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.

• Other Models

• Here you find 600 models, 576 with images and 345 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Belgium (Belgien)
