B4C87A

Philips Canada

Data
Forum
Pictures
Collections

  • Year
  • 1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 194550

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org

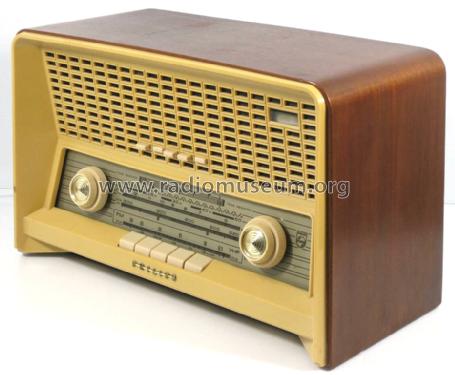

  • Model: B4C87A - Philips Canada
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 18 x 10.63 x 8.125 inch / 457 x 270 x 206 mm
  • Notes

  • Philips Canada B4C87A features FM/VHF up to 108 MHz, SW 5.8...12.5 MHz, BC.
    5 Push-Button tone register, magic band as tuning indicator.
    Connections for Pick-up, tape, ext. speaker.
    Wooden case with plastic front.

    Compare with the similar Dutch model B4X82A where technical documents can be found.

  • Net weight (2.2 lb = 1 kg)
  • 15 lb 10 oz (15.625 lb) / 7.094 kg
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
