• Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 92876

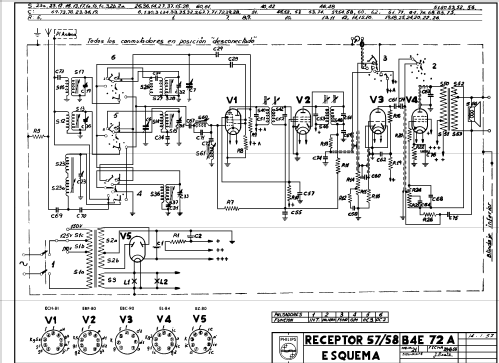

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org

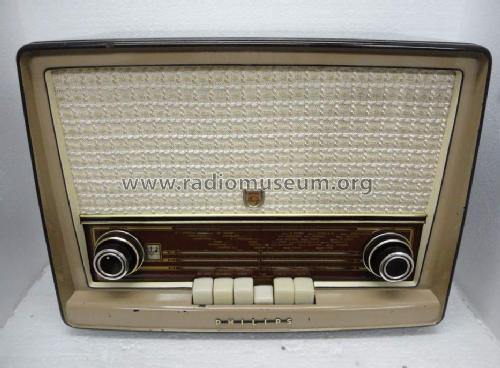

  • Model: B4E72A - Philips Ibérica, COPRESA,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 418 x 305 x 213 mm / 16.5 x 12 x 8.4 inch
  • Notes
  • Philips Ibérica, S.A., Miniwatt, Copresa, B4E72A

    Bandas de OM, Onda Pesquera y Onda Corta

    Altavoz 5 Ω tipo ZB9768M (doble cono)
