B4S33AD /01

B4S33AD /01; Philips, Svenska AB, (ID = 2445231) Radio B4S33AD /01; Philips, Svenska AB, (ID = 2445232) Radio
B4S33AD /01; Philips, Svenska AB, (ID = 2445233) Radio B4S33AD /01; Philips, Svenska AB, (ID = 2445234) Radio
B4S33AD /01; Philips, Svenska AB, (ID = 2445241) Radio B4S33AD /01; Philips, Svenska AB, (ID = 2445242) Radio
Use red slider bar for more.
B4S33AD /01; Philips, Svenska AB, (ID = 2445231) Radio
Philips, Svenska AB,: B4S33AD /01 [Radio] ID = 2445231 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4S33AD /01, Philips, Svenska AB, Stockholm:

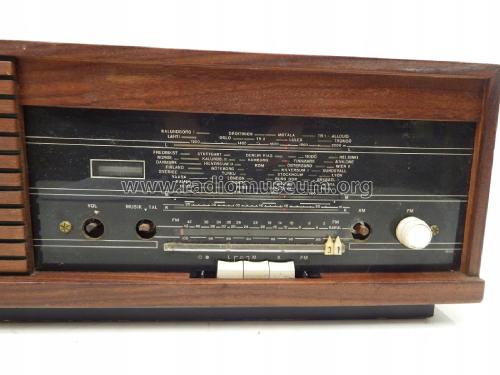

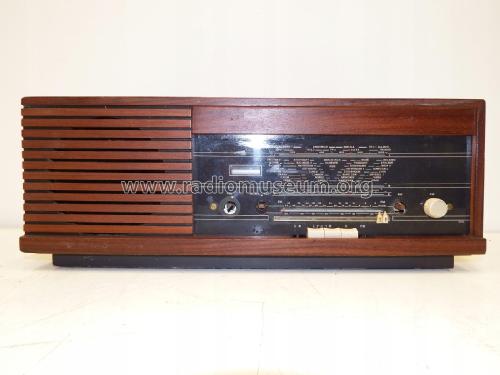

Image taken from polish online auction portal .allegro.pl. Auction number_8574890591

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner

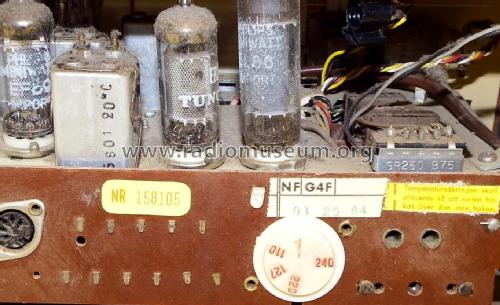

Valves / Tubes ECC85 ECH81 EF89 EBC81 EM84 EL86
Semiconductors (the count is only for transistors) SR250B75
Main principle Superheterodyne (common); ZF/IF 468/10850 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B4S33AD /01 - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 490 x 180 x 190 mm / 19.3 x 7.1 x 7.5 inch

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
